Description
The MicrAtec NL joint is suitable as field dilation in floors with hard finishes. The brass or stainless steel profile absorbs forces caused by shrinkage, expansion due to temperature fluctuations and high traffic loads.
MicrAtec NL/ND - Vexcolt Europe BV
MicrAtec NL/ND
Surface
Easy transit: Americans with Disabilities Act (ADA) compliant across the entire movement cycle
8mm minimum visible line width between finishes
VAMAC versions of these joints are London Underground Limited 1-085 ‘Fire Safety Performance of Materials’ tested and approved for below ground applications such as metro stations.
Traffic Frequency per day
Movement
Good movement capacity
Downloads
Animations

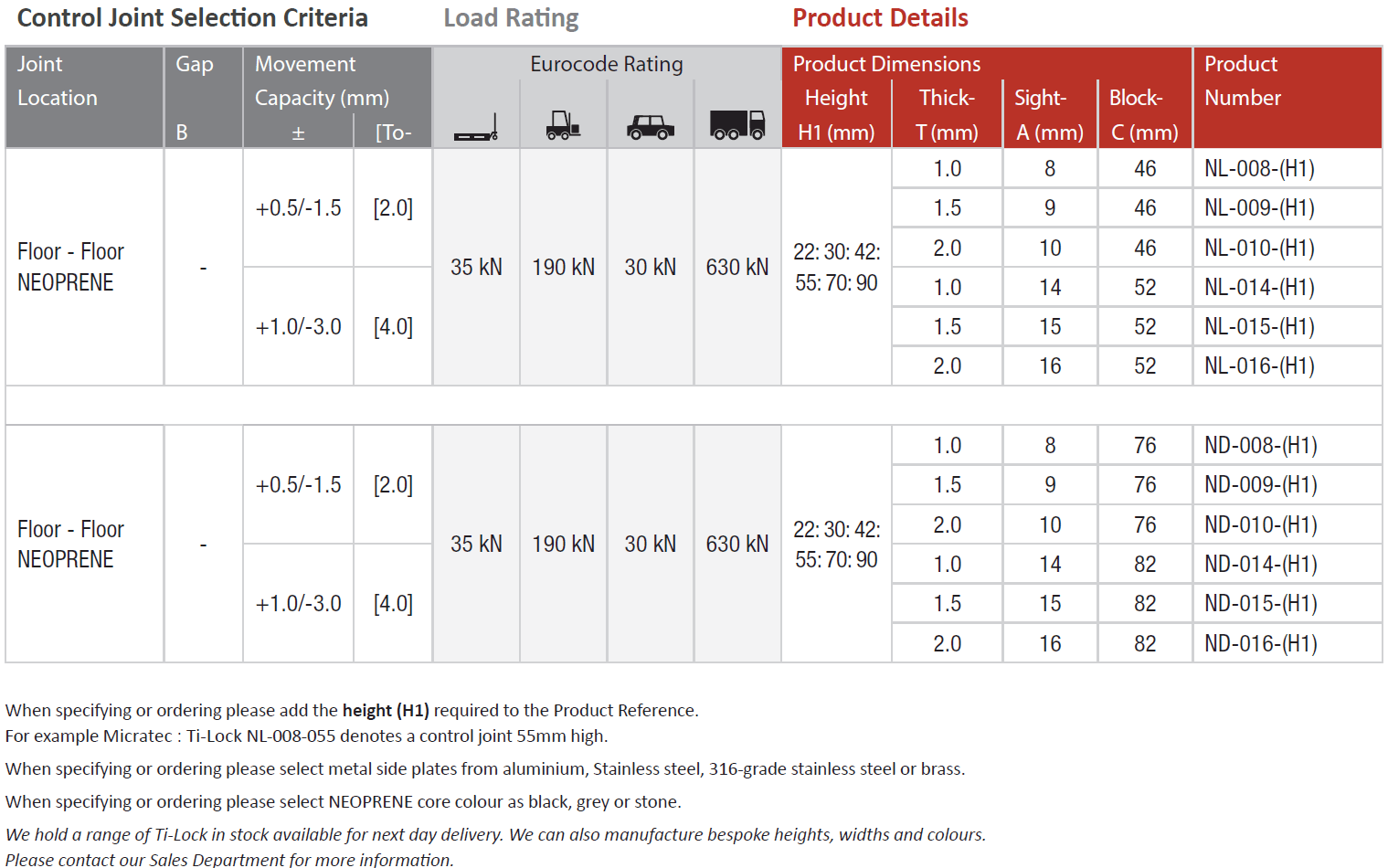

Additional information
| Sightline width(s) | 8, 9, 10, 14, 15, 16 mm |
|---|---|
| Height(s) | 22, 30, 42, 55, 70, 90 mm |
| Metal thickness(es) | 1.0, 1.5, 2.0 mm |
| Metal type(s) | Stainless Steel, Aluminium, Brass |
| Seal colour(s) | Black, Grey, Stone (Neoprene/Vamac) |
| Pre-assembly in factory | Not applicable |
