Description
MegAtec 340-SS01/SS02 - Vexcolt Europe BV
MegAtec 340-SS01/SS02
Surface
Smooth transit
80-grit surface finish to stainless steel
for improved slip resistance
Americans with Disabilities Act (ADA) compliant across the entire movement cycle
Movement
Seismic movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind
Class III: Seismic

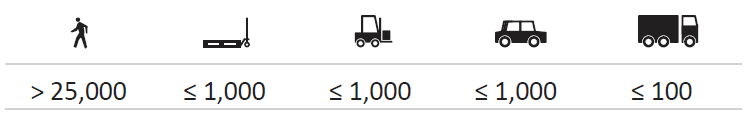

Traffic Frequency per day
Downloads
Animations
Additional information

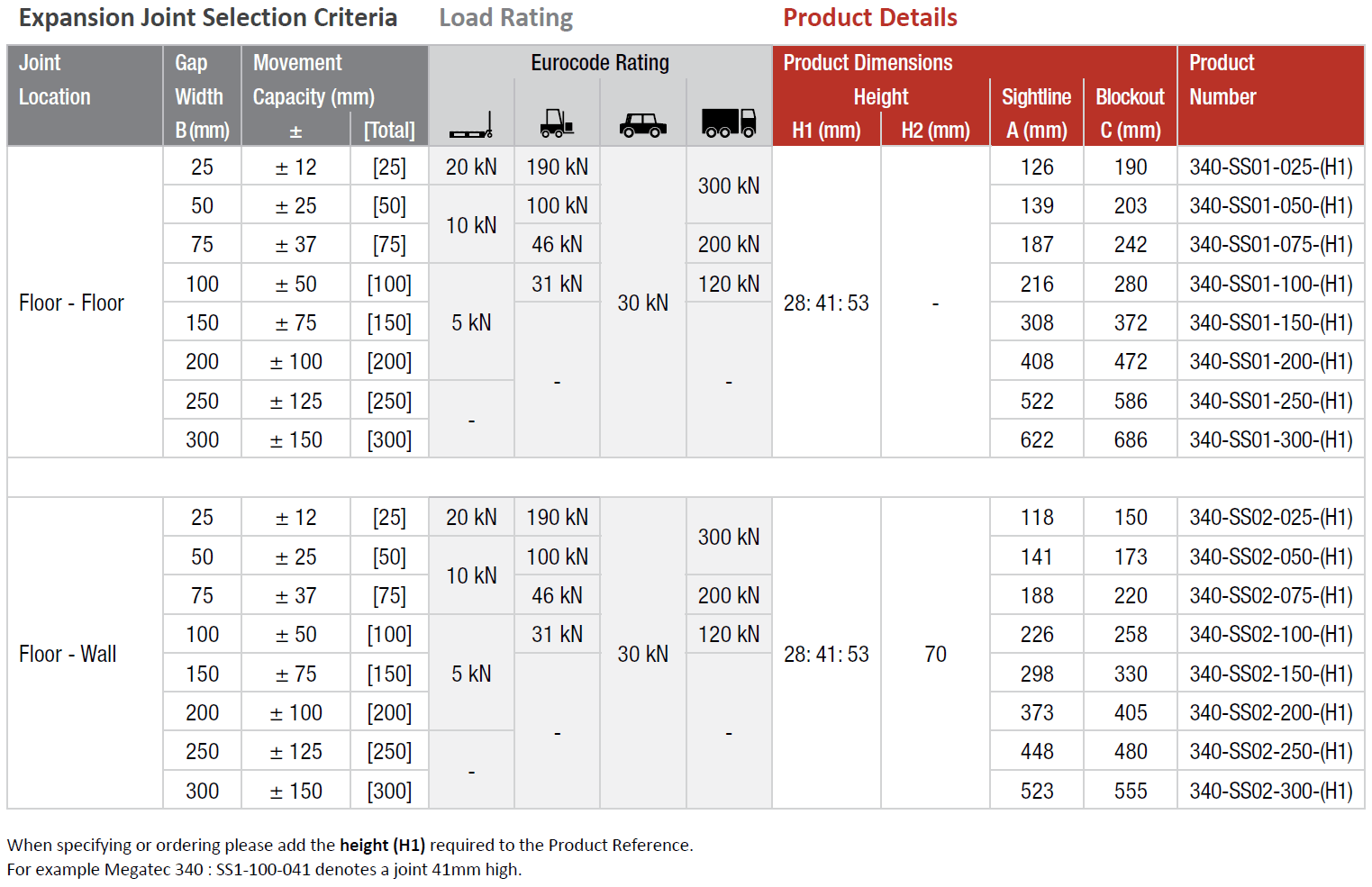

| Gap width(s) | 25, 50, 75, 100, 150, 200, 250, 300 mm |
|---|---|
| Height(s) | 38, 50, 70 mm |
| Metal type(s): | Top Plates: 304-grade Stainless Steel |
| Fire barrier | 120- 240 minutes |
| Waterproofing | Waterproofing membrane |
| Pre-assembly in factory | Contact Atec Profile Systems |
