Description
OmegAtec 1300-A01 - Vexcolt Europe BV
OmegAtec 1300-A01
Surface

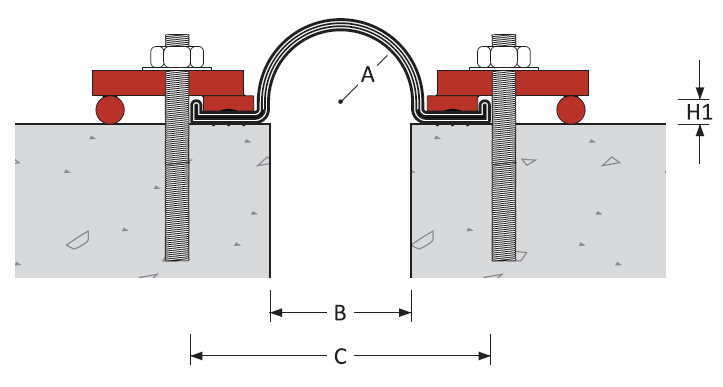

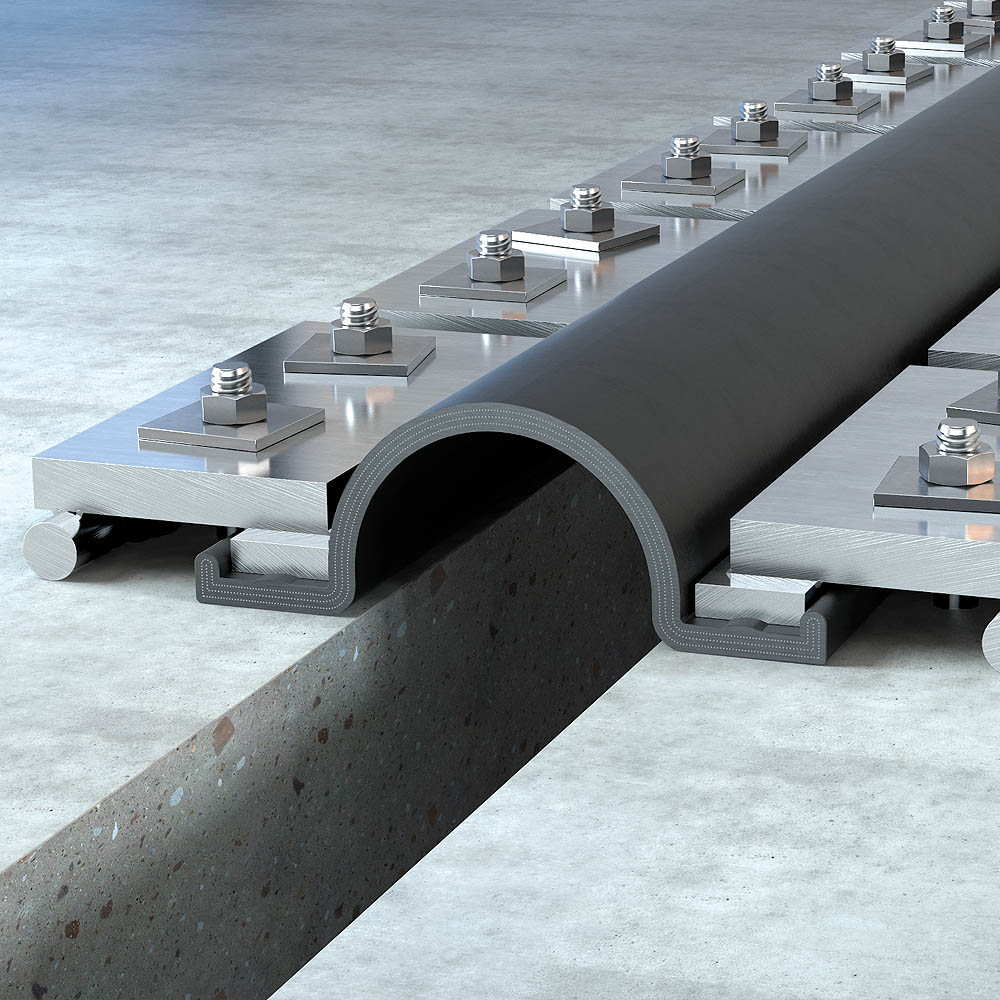

Omega-type seal
Movement
High movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind
Class III: Seismic
Traffic Frequency per day
Downloads
Additional information
| Applications | Underground tunnels, tunnels, aqueducts, bridges & roads, underground applications |
|---|---|
| Gap width(s) | 50, 80, 100, 140, 200, 250 mm |
| Height(s) | 13, 18 mm |
| Metal type(s) | Galvanised Steel clamping system |
| Colour(s) | Black |
| Fire barrier | 120- 240 minutes |
| Waterproofing | Max. water pressure 1.75 MPa |
| Pre-assembly in factory | Contact Atec Profile Systems |
