SeismAtec 410-A01/A02
Surface
Smooth transit central pan system.
During a seismic event the central pan lifts and the winged side frames rotate to provide safe egress to people with mobility difficulties.
Fully Americans with Disabilities Act (ADA) compliant across the entire movement cycle
Movement
Seismic movement capacity
ASTM E-1399
Class I: Thermal
Class II: Wind
Class III: Seismic
Seismic movement: +/-50% of expansion gap width
Traffic Frequency per day
Downloads
Additional information

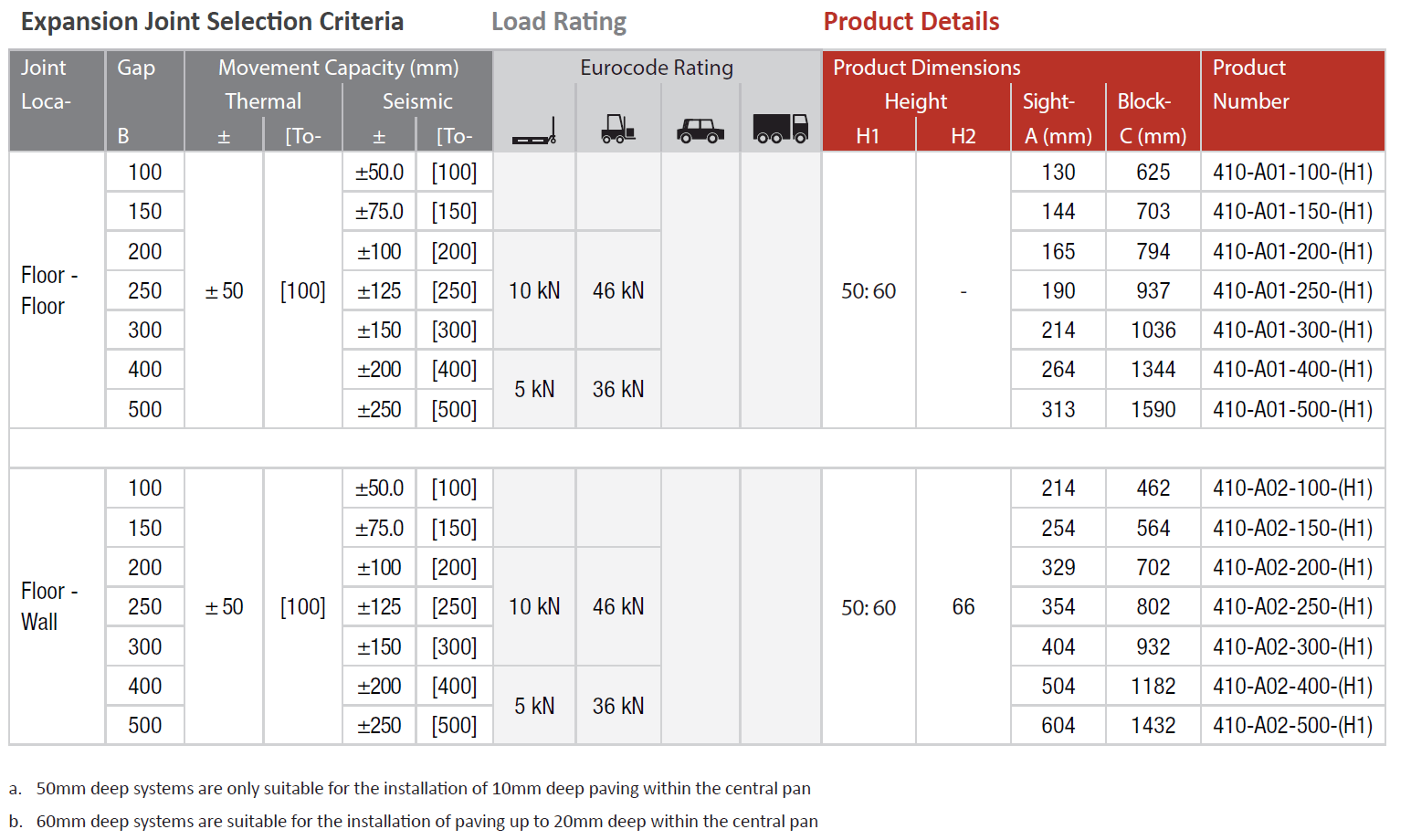

| Gap width(s) | 100, 150, 200, 250, 300, 400, 500 mm |
|---|---|
| Height(s) | 50, 60 mm |
| Metal type(s) | Aluminium |
| Fire barrier | 120- 240 minutes |
| Waterproofing | Waterproofing membrane |
| Pre-assembly in factory | Contact Atec Profile Systems |
